Brand Name : SKYWIN
Certification : CE,ISO
Place of Origin : China
MOQ : 1 Set
Price : $56,800.00 / Set
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 5 Set/Sets per Month
Delivery Time : 50 days
Packaging Details : The machine shall be packaged by wooden cases, which are suitable for long distance transportation and seaworthy.
Machinery Test Report : Provided
Video Outgoing-inspection : Provided
Output Product Name : Sandwich Biscuit
Material : 304 Stainless Steel
After-sales service provided : Field maintenance and repair service
Main Motor : Servo Motor
Warranty : 1 Year
Inverter : Siemens Brand
Programme Control : SIEMENS PLC Touch Control
Key Selling Points : High Productivity

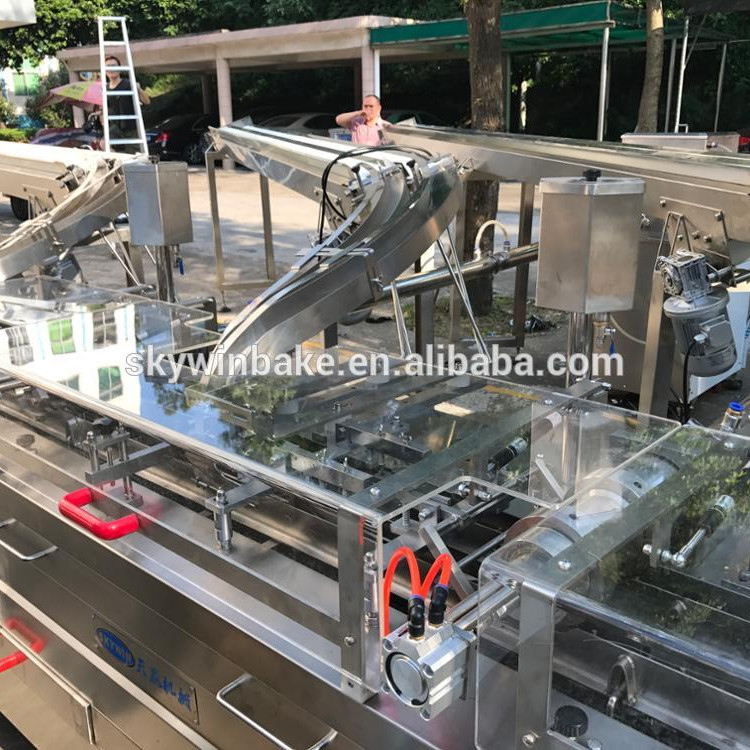

Two Lane Biscuit Sandwich Machine With Trayless On Edge Packing Machine
Product Descripton:
Traditional gear pump is replaced by star-wheel rotor pump in stuff-feeding, so the stuffing of biscuits is evener, and the pump will not be blocked in operation for a long time.
Product Features:
1. Adopting unite-operation to adjust the speed and the operation is more convenient.
2. The biscuit is fed by the shapely chains, the producing efficiency and the qualified rate is high.
3. With novel aspect, the whole machine is mainly made of stainless steel and meets the foodstuff sanitation requirement.
4. The shape of the stuffing is various, and the quantity of materials easy to adjust.
Product specification:
Sandwich biscuit machine
Two Lane Sandwiching Machine | |
biscuit size | Rectangle |
L ( 35 -80 ) * W ( 40 - 65 ) mm | |
Round | |
Φ35 - Φ65mm thickness : 4 - 8mm | |
Capacity | 600 - 1200 sandwiches / min |
operating voltage | single - phase AC 220V 50Hz |
machine size | 7430 * 3300 * 1500 mm |
Weight ( Cream tanks capacity ) | 1350 kgs ( 50L ) |
total power | 4Kw |
Special specification is acceptable |
Pillow flow pack packing machine
Model | QWZ - 360 |
packing speed | 30 - 100 packs / min |
Bag size | Length 100 - 240 mm |
Width 40 - 80 mm | |
Height 40 - 70 mm | |
( Adjustable by screen ) | |
Floor space ( L * W ) | 4100 * 965mm |
Power consumption | 4.1 kw |
Single phase | 220V / 50Hz |
Net weight | 1500kg |
![]() |

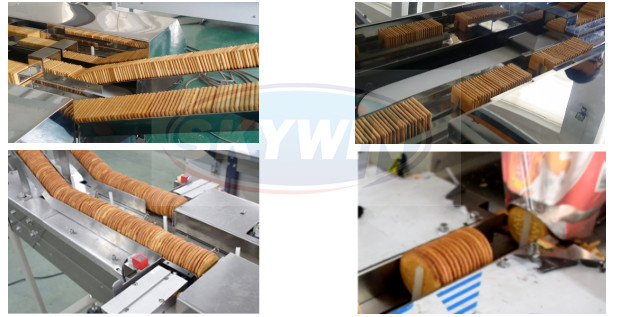

Two Lane Biscuit Sandwich Machine With Trayless On Edge Packing Machine Images |
